# 使用feilong发企业微信机器人

企业微信机器人在日常的使用场景中越来越多, 比如服务器关键任务告警,定时发通知提醒等等, 和短信相比即免费又不像短信逐渐只有接收验证码的功能, 那么问题来了,如何使用feilong来发送企业微信机器人呢?

简单 3 步

### 第1步: jar 依赖

必要依赖 (注意检查不要和项目已有的依赖重复了)

```xml
    <dependency>
      <groupId>com.github.ifeilong</groupId>
      <artifactId>feilong</artifactId>
      <version>4.5.0</version>
    </dependency>

    <dependency>
      <groupId>org.apache.httpcomponents</groupId>
      <artifactId>httpmime</artifactId>
      <version>4.5.12</version>
      <exclusions>
        <exclusion>
          <artifactId>httpclient</artifactId>
          <groupId>org.apache.httpcomponents</groupId>
        </exclusion>
      </exclusions>
    </dependency>

    <dependency>
      <groupId>org.apache.httpcomponents</groupId>
      <artifactId>httpclient</artifactId>
      <version>4.5.12</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>5.2.7.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>5.2.7.RELEASE</version>
    </dependency>
```

for test 和日志 (注意检查不要和项目已有的依赖重复了)

```xml
    <!--下面是for test 和日志-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>5.2.7.RELEASE</version>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>1.7.30</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>1.7.30</version>
    </dependency>
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>1.2.17</version>
    </dependency>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.13</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>org.hamcrest</groupId>
      <artifactId>hamcrest-library</artifactId>
      <version>1.3</version>
      <scope>test</scope>
    </dependency>
```

### 第2步: 使用xml 配置机器人

wxbot.xml

注意xml中需要使用feilong 的customer xml tag

feilong:wxworkBot 只有一个核心自定义属性, key 是企业微信机器人对应的key , key 参考 [如何配置群机器人？](https://work.weixin.qq.com/help?person_id=1\&doc_id=13376)

```xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:feilong="http://www.feilong.com/schema/feilong"

	xsi:schemaLocation="
	http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.feilong.com/schema/feilong http://www.feilong.com/schema/feilong/feilong.xsd
    ">

	<!-- 务必替换成你们的key-->
	<feilong:wxworkBot id="wxworkBot" key="80fa90*******a48f1d9e27" />

</beans>
```

### 第3步: 使用

简单小示例:

```java

package com.feilong.namespace;

import static org.hamcrest.MatcherAssert.assertThat;
import static org.hamcrest.Matchers.allOf;
import static org.hamcrest.Matchers.hasProperty;
import static org.hamcrest.Matchers.is;

import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.AbstractJUnit4SpringContextTests;

import com.feilong.net.bot.wxwork.WxworkBot;
import com.feilong.net.bot.wxwork.message.WxworkResponse;

@ContextConfiguration(locations = { "classpath*:wxbot.xml" })
public class WxworkBotTagTest extends AbstractJUnit4SpringContextTests{

    @Autowired
    @Qualifier("wxworkBot")
    private WxworkBot wxworkBot;

    //---------------------------------------------------------------

    @Test
    public void test(){
        WxworkResponse wxworkResponse = wxworkBot.sendMessage("hello world");

        assertThat(
                        wxworkResponse,
                        allOf(
                                        hasProperty("isSuccess", is(true)), //
                                        hasProperty("errcode", is("0"))));
    }
}


```

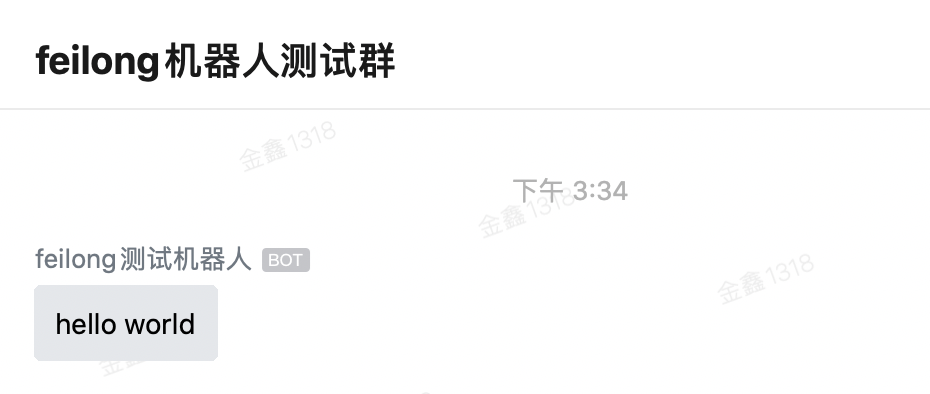

执行这个单元测试, 你将会收到企业微信机器人发的消息

![bot221](https://ifeilong.oss-cn-beijing.aliyuncs.com/%E6%88%AA%E5%B1%8F2020-08-03%20%E4%B8%8B%E5%8D%883.33.22.png)

### 关于 WxworkBot

com.feilong.net.bot.wxwork.WxworkBot 提供了2个易用的方法

* sendMessage(String) 发送普通消息,以及Markdown格式的消息
* sendNewsMessage(Article...) 发送推送图文类型消息

#### sendMessage(String) 发送普通消息,以及Markdown格式的消息

在上述 hello world示例中, 你可以看到发送简单消息, 也支持markdown格式的消息, 比如

```java
    @Test
    public void test(){
        wxworkBot.sendMessage(
                        "实时新增用户反馈<font color=\"warning\">132例</font>，请相关同事注意。\n" + "> 类型:<font color=\"comment\">用户反馈</font>\n"
                                        + "> 普通用户反馈:<font color=\"comment\">117例</font>\n"
                                        + "> VIP用户反馈:<font color=\"comment\">15例</font>");
    }
```

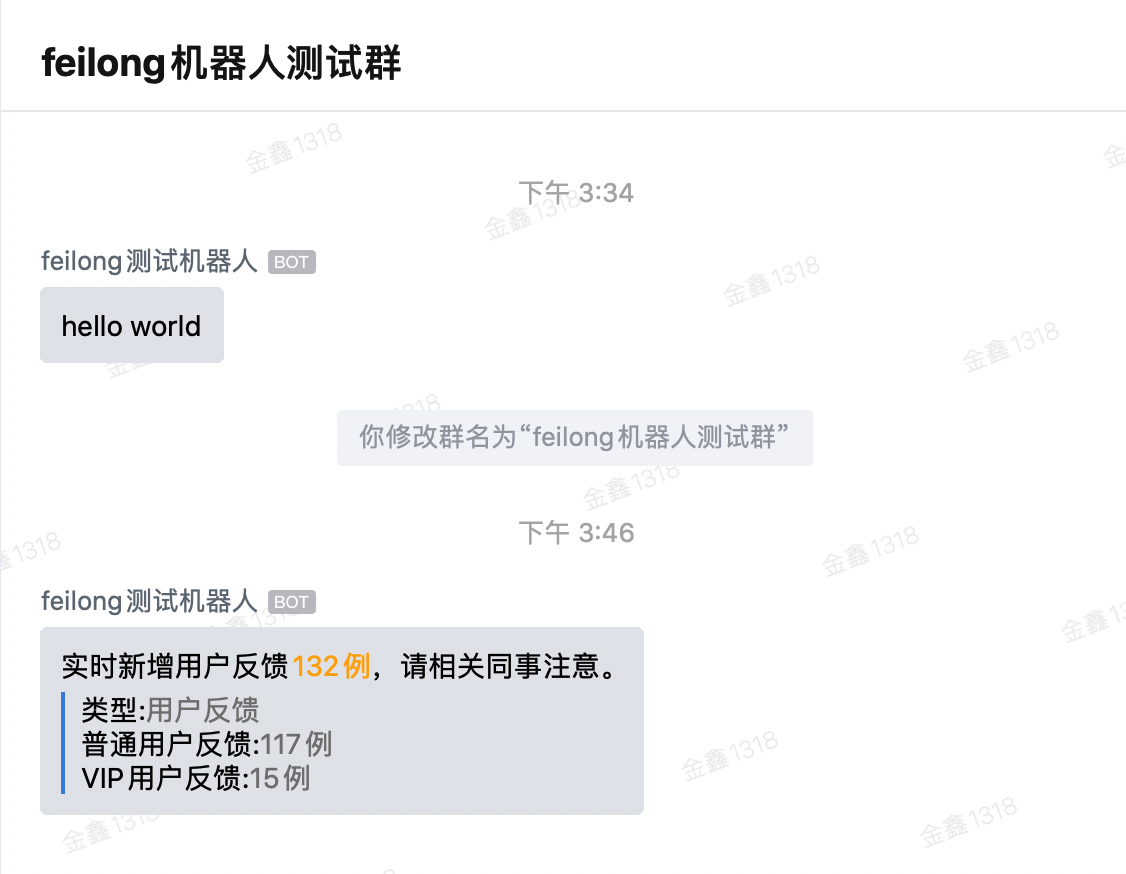

效果:

![bot2212](https://ifeilong.oss-cn-beijing.aliyuncs.com/%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_f2754001-9493-419d-8a42-39e0525ab7ef.png)

#### sendNewsMessage(Article...) 发送推送图文类型消息

你还可以使用sendNewsMessage 来推送图文类型的消息,

```java

package com.feilong.namespace;

import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.AbstractJUnit4SpringContextTests;

import com.feilong.net.bot.wxwork.WxworkBot;
import com.feilong.net.bot.wxwork.message.news.Article;

@ContextConfiguration(locations = { "classpath*:wxbot.xml" })
public class WxworkBotTagNewsMessageTest extends AbstractJUnit4SpringContextTests{

    @Autowired
    @Qualifier("wxworkBot")
    private WxworkBot wxworkBot;

    @Test
    public void test(){
        //是 标题，不超过128个字节，超过会自动截断
        String title = "提醒您,点击填Timesheet";

        //描述，不超过512个字节，超过会自动截断
        String description = "@all 点我直接填写Jira Timesheet" + "\n\n" + "我爱工作,工作使我快乐";

        //"点我直接填写Jira Timesheet",
        String url = "http://jira.xxx.cn/plugins/servlet/aio-ts/bridge/pages/aiotimeentry";
        String img = "https://timgsa.baidu.com/timg?image&quality=80&size=b9999_10000&sec=1585320605587&di=9424f8862476b2ce819ac9f5637567b1&imgtype=0&src=http%3A%2F%2Fimgsrc.baidu.com%2Fimgad%2Fpic%2Fitem%2F503d269759ee3d6d55e89bf048166d224f4adeda.jpg";

        wxworkBot.sendNewsMessage(new Article(title, description, url, img));
    }
}


```

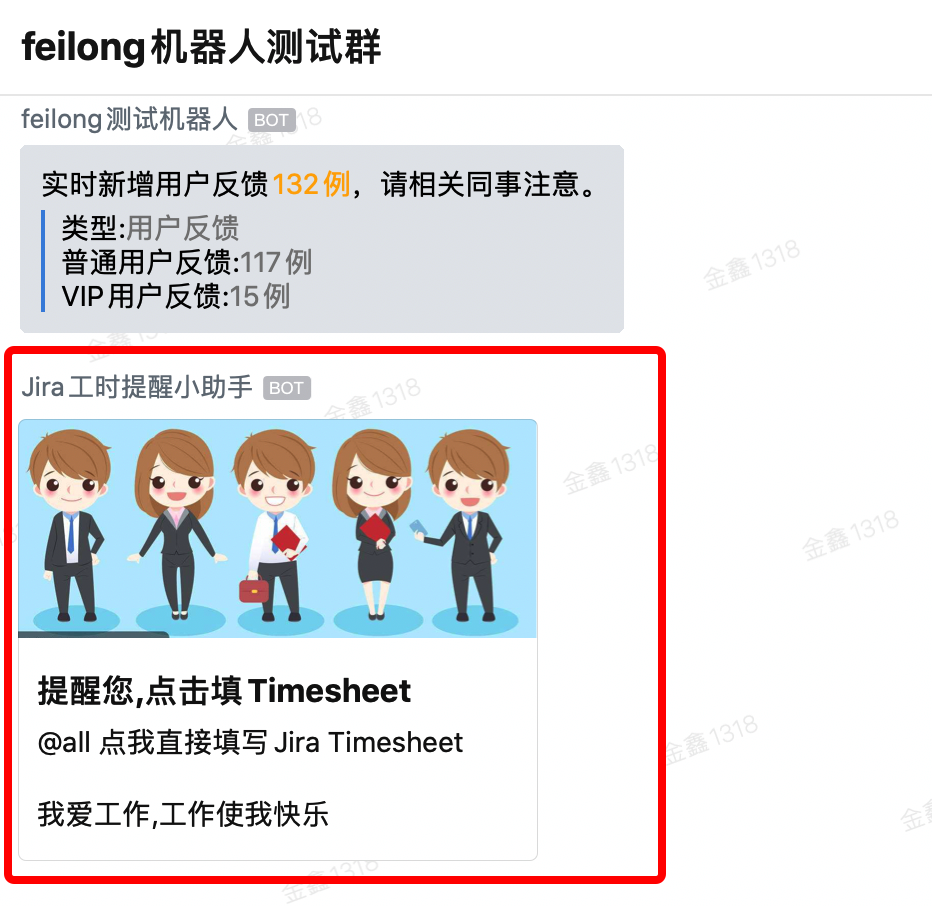

效果:

![bot22123](https://ifeilong.oss-cn-beijing.aliyuncs.com/%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_3f50d0cf-98ad-4159-85ae-bda7c9965c18.png)

\--完


---
